In-depth Analysis and Installation Guide for GRWA Mufflers with Exhaust Valves

    GRWA Auto Parts, as a leading supplier in the automotive accessories industry, hereby introduces two new products: the version with a vacuum pump and the version with a black box, to cater to the personalized needs of different car owners. Below is a detailed guide on the composition, features, and installation of these two mufflers, ensuring that every car owner can easily upgrade and enjoy an unprecedented driving experience.

Product Composition and Features

1.1 Materials and Construction
    a) Muffler Body:
    Crafted from high-quality SS304 stainless steel, it is corrosion-resistant and heat-resistant, ensuring stability and durability over long-term use.
    b) Exhaust Valve:
    Also made of SS304 stainless steel, precision-manufactured to ensure smooth opening and closing of the valve with excellent sealing performance.
    c) Vacuum Pump/Black Box Control System:
    Customized according to vehicle models, it precisely controls the opening and closing of the exhaust valve, enabling flexible adjustment of the sound waves.

1.2 Style Options

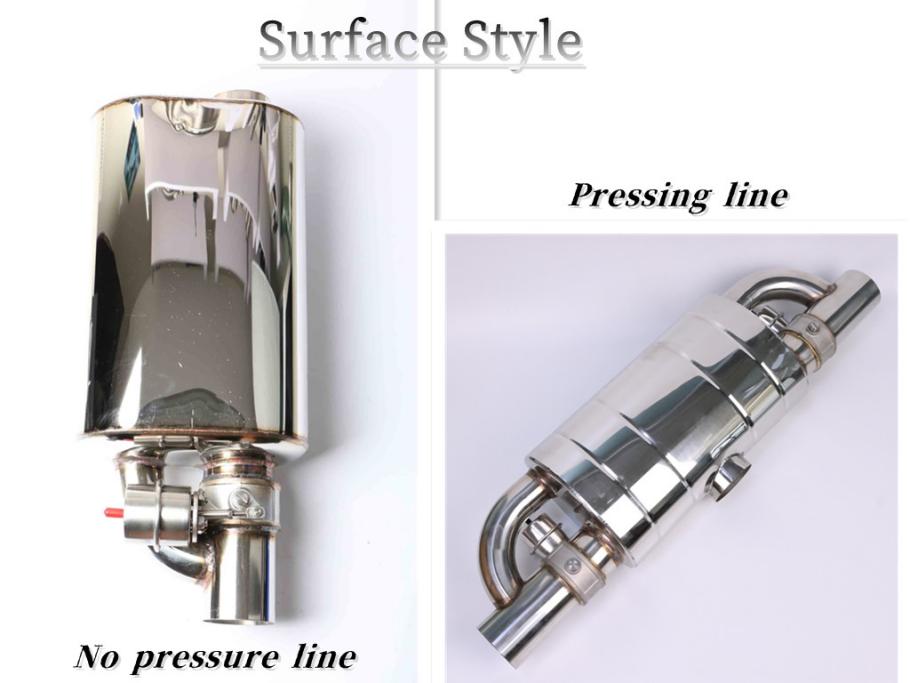

    a) Surface Design:
    Two designs are available: pressed lines and non-pressed lines. The pressed line design is more refined, suitable for car owners who pursue aesthetic details; the non-pressed line design is more minimalist and elegant, suitable for various styles.
    b) Size Specifications:
    Available in 63mm, 76mm, and 89mm sizes, comprehensively covering the exhaust system needs of mainstream vehicle models in the market.

1.3 Functional Characteristics
    a) Dynamic Sound Control:
    Opening the exhaust valve releases the engine's roar, adding to the driving passion; when closed, it restores the original quietness, balancing the comfort of daily driving.
    b) Enhanced Exhaust Efficiency:
    The optimized internal structure design effectively reduces exhaust backpressure, improves engine power output, and accelerates response more rapidly.

Installation Guide

2.1 Preparation Before Installation:
    a) Confirm that the selected muffler model matches the vehicle's exhaust system.
    b) Prepare necessary installation tools, such as wrenches, screwdrivers, etc.
    c) Disconnect the vehicle's power supply to ensure safety.

2.2 Installation Steps:
Step 1 - Remove the Original Muffler:
    a) Use appropriate tools to remove the screws connecting the original muffler and the exhaust pipe.
    b) Carefully remove the original muffler, ensuring to retain the original sealing gasket (replace if damaged).

Step 2 - Install the New Muffler:
    a) Align the exhaust pipe interface according to the markings on the muffler to ensure the correct installation position.
    b) Use a new sealing gasket (if provided) to ensure no air leakage at the connection.
    c) Tighten the connecting screws sequentially, using diagonal tightening to avoid uneven force.

Step 3 - Install the Exhaust Valve Control System (for Versions with Vacuum Pump/Black Box):
    a) Find a suitable installation position according to the instructions, usually located within the engine compartment for easy operation.
    b) Connect the vacuum pump/black box to the control wiring of the exhaust valve, ensuring the wiring is fixed and unobstructed.
    c) For the vacuum pump version, also connect it to the engine's vacuum source; the black box version may involve power connection, so please follow the instructions for correct wiring.

Step 4 - Functional Testing:
    a) Start the vehicle and check if the exhaust valve can open and close normally, listening to the sound to determine if it meets expectations.
    b) Check all connections for air leakage and adjust if necessary.

2.3 Precautions After Installation:
    a) After the initial drive, it is recommended to check if all screws are loose to ensure a secure installation.
    b) Regularly inspect the exhaust system, including the muffler and exhaust valve, to ensure they are in good condition.

    GRWA's mufflers with exhaust valves are not only an upgrade to vehicle performance but also a deep exploration of driving pleasure. Through the above professional guide, we believe you have gained a certain understanding of the installation method of this product. Choose GRWA, and let every acceleration be full of passion, and every journey be unforgettable.
