Performance Parameters of Bellows And Influencing Factors on Toughness And Quality

The flexible pipe is a commonly used metal pipe connection element in industrial fields due to its excellent flexibility and pressure resistance. In the automotive industry, flexible pipes are installed in the exhaust pipe between the engine exhaust manifold and the muffler to provide flexible connection, shock absorption, and noise reduction for the entire exhaust system. This not only facilitates convenient installation but also extends the life of the exhaust muffler system.

Performance parameters of bellows:

Maximum compression length: Under the action of external forces, the bellows are compressed to the length when the ripples are in close contact with each other.

Maximum compression displacement: The maximum displacement that can be generated when the bellows are compressed into close contact with each other.

Pressure resistance: The maximum static pressure that the bellows can withstand under the condition of maintaining a stable state or producing permanent deformation.

Working pressure: refers to the maximum pressure in the whole working process.

Effective area: The effective area determines the amount of concentrated force generated at the end when the pressure is applied.

Stiffness: Stiffness is reciprocal with sensitivity, that is, sensitivity is large, stiffness is small, sensitivity is small, stiffness is large.

Stability: The ability of the bellows to resist local failure or overall instability under the action of external forces.

Life: The minimum period during which the bellows can keep the error in normal operation within the allowable range.

Factors affecting the quality and toughness of bellows:

Thickness

The thickness of the bellows is one of the important indicators to measure its quality. In general, the greater the thickness of the bellows, the better its bearing capacity and durability. However, too thick bellows may also lead to installation difficulties and inconvenience. Therefore, when selecting the bellows, it is necessary to determine the appropriate thickness according to the specific use environment and requirements.

Material

The material of the bellows is also a key factor affecting its quality. Common corrugated pipe materials are stainless steel, carbon steel, plastic and so on. Different materials of bellows have different performance and scope of application. The toughness of the corrugated pipe refers to its deformation ability and recovery ability for external impact, extrusion or tensile forces, and is closely related to the strength and plasticity of the selected material. Metal materials with high strength, such as metal pipes, etc., mostly have low toughness, are not easy to deform, and are easy to break or deform once they withstand overload forces. On the contrary, the selection of corrugated pipes made of metal materials with better plasticity, although the strength is lower, it can better withstand the force of deformation and tension, and its toughness is better.

Wave Number

Wave number is an important parameter of bellows, which reflects the wave density and bearing capacity of bellows. The more wave number, the denser the waveform of the bellows, and the stronger the bearing capacity. However, excessive wave number may also cause the bending radius of the bellows to increase, making installation difficult. Therefore, when selecting the bellows, it is necessary to determine the appropriate wave number according to the specific use environment and requirements.

Wave Height

Wave height is another important parameter of the bellows, which reflects the waveform amplitude and flexibility of the bellows. The greater the wave height, the better the flexibility of the bellows, but too large the wave height may also lead to a reduction in the bearing capacity of the bellows. Therefore, when selecting the bellows, it is necessary to determine the appropriate wave height according to the specific use environment and requirements.

Manufacturing Process And Technology

Manufacturing process and technology is another key factor affecting the quality and toughness of bellows. The manufacturing process of bellows includes forming, welding, heat treatment and many other links. Each link requires precise control of process parameters, such as temperature, pressure, time, etc., to ensure the quality and toughness of the bellows. Advanced manufacturing process and technology can improve the molding accuracy, welding quality and material properties of the bellows, thereby improving its overall performance.

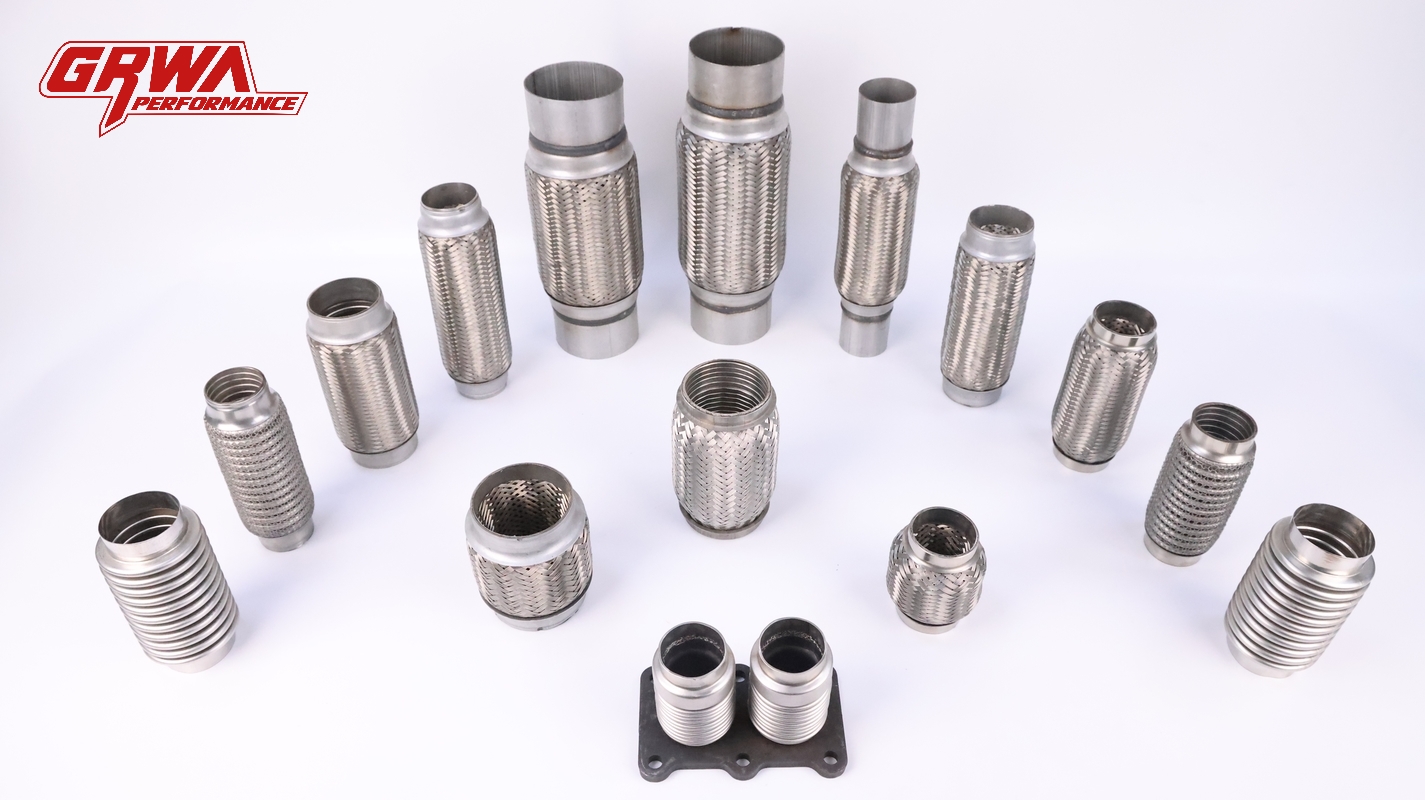

GRWA has been committed to the field of automotive parts for decades, and its flexible pipes have become the first choice of many modification enthusiasts for their excellent quality and excellent performance. GRWA bellows with its unique materials and precision manufacturing process, further ensure its stability and durability in extreme environments such as high temperature and high pressure.

Choose GRWA, the pursuit of the perfect car modification road. We use sincere one-stop service to provide you with the best solution.
